Intuitive Interface, Enhanced Monte-Carlo Ray Tracing, Path Sorting, and strong CAD Import/Export
Optical design software has revolutionized the way engineers and scientists approach complex optical systems. By integrating advanced stray light analysis and optical analysis software capabilities, these tools provide unprecedented insight into the behavior of light within various setups. One such powerful solution is TracePro, which combines illumination simulation software with illumination design software features to offer a comprehensive platform for optical system optimization.
What is Stray Light in Optical Systems
In all optical and illumination systems, stray light is an inevitable phenomenon that demands careful consideration. This unwanted light can manifest in various forms, including ghost images in lens systems, single and multiple scatter from optical and mechanical surfaces, as well as narcissus and self-emission in infrared systems. Ghost images, for instance, occur when light rays reflect from lens surfaces and reach the image plane at unintended locations. At any surface boundary, multiple interactions can contribute to stray light, including reflection, refraction, absorption, reflective scatter, and transmissive scatter.
TracePro for Stray Light Analysis

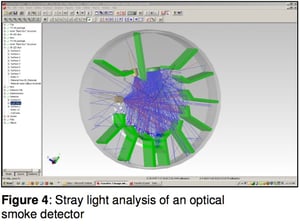

TracePro, as a leading optical design software, excels in accurately predicting and analyzing stray light resulting from each of these phenomena. Its advanced features provide invaluable insights into identifying problematic stray light paths. Users can visualize and quantify individual stray light paths and employ Boolean filters to group similar paths together. This optical analysis software allows for the display of rays from specific paths, as well as the generation of 2D and 3D irradiance maps resulting from selected paths. The comprehensive Flux Report details the amount of light incident and absorbed on each surface and object, offering a holistic view of the system's optical performance.
Seamless CAD Integration

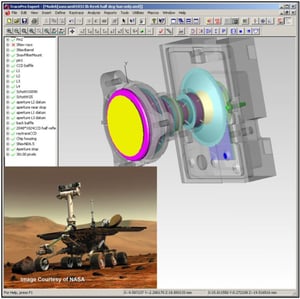

One of TracePro's standout features is its robust interoperability. This illumination design software enables seamless import of lens design files and supports import and export of standard CAD file formats. Such compatibility enhances workflow efficiency and allows for seamless integration with other design tools in the optical engineering process.
Advanced Ray Splitting

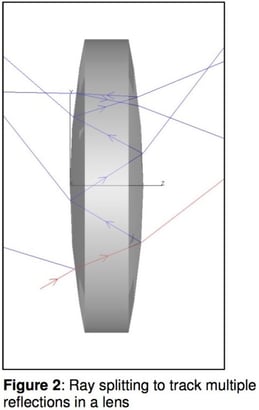

The ray splitting feature in TracePro represents a significant advancement in optical analysis software. This capability allows a parent ray to split into child rays, accounting for reflection, refraction, transmissive and reflective scatter, and absorption. Ray splitting is particularly crucial for efficient sampling of rays reflected from lens surfaces and is indispensable for ghost analysis in complex optical systems.
Monte Carlo Ray Tracing
At the core of TracePro's illumination simulation software capabilities lies its powerful Monte Carlo ray tracing engine. This sophisticated tool simulates optical phenomena as probability distributions, utilizing pseudo-random numbers to sample these distributions effectively. To enhance simulation efficiency, TracePro employs variance reduction techniques, improving performance by orders of magnitude compared to crude Monte Carlo methods.
Importance Sampling Efficiency

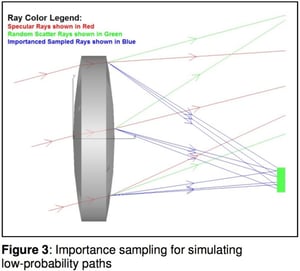

One such variance reduction method implemented in this optical design software is importance sampling. This technique increases sampling in low-probability scattered paths that might otherwise be under-sampled. By using a scatter distribution function to determine probability density and apportion a fraction of the scattered ray flux into a desired direction, importance sampling can dramatically speed up the convergence of the simulation, often by several orders of magnitude.
Comprehensive Design Environment
TracePro's intuitive design environment, coupled with its powerful Monte-Carlo simulation, scatter modeling, visualization, and analysis features, positions it as a top-tier illumination design software. Its outstanding performance and accuracy make it an indispensable tool for optical engineers and researchers alike.
Applications in Optical Engineering
The versatility of TracePro as an optical analysis software extends to a wide range of applications. It is extensively used for stray light analysis and related tasks, including baffle design for stray light suppression, analysis of stray light due to scattering, aperture diffraction, and ghost images. The software's capabilities also encompass the simulation of self-emission in infrared and longer-wavelength systems, as well as the modeling of polarization effects, including birefringence.
Multi-Spectral Systems & Thermal Effects
Furthermore, this illumination simulation software excels in the simulation of spectrometers and other multi-spectral systems, allowing for in-depth analysis of complex optical setups. It also provides tools for evaluating thermal effects and loading, which are crucial considerations in many optical systems. TracePro's ability to simulate narcissus effects and model diffraction gratings further solidifies its position as a comprehensive optical design software solution.
Applications in Optical Engineering
The versatility of TracePro as an optical analysis software extends to a wide range of applications. It is extensively used for stray light analysis and related tasks, including baffle design for stray light suppression, analysis of stray light due to scattering, aperture diffraction, and ghost images. The software's capabilities also encompass the simulation of self-emission in infrared and longer-wavelength systems, as well as the modeling of polarization effects, including birefringence.
Multi-Spectral Systems & Thermal Effects
Furthermore, this illumination simulation software excels in the simulation of spectrometers and other multi-spectral systems, allowing for in-depth analysis of complex optical setups. It also provides tools for evaluating thermal effects and loading, which are crucial considerations in many optical systems. TracePro's ability to simulate narcissus effects and model diffraction gratings further solidifies its position as a comprehensive optical design software solution.
Features
TracePro is used extensively for stray light analysis and related applications, including:
- Baffle design for stray light suppression: TracePro helps design baffles that block stray light, minimizing unwanted reflections and enhancing optical system performance. This is crucial in systems where precise light control is needed.
- Analysis of stray light due to scattering, aperture diffraction, and ghost images: TracePro accurately predicts and visualizes how stray light is caused by surface scatter, diffraction, and ghost images, allowing engineers to identify and mitigate potential issues.
- Self-emission of infrared and longer-wavelength systems: TracePro simulates the self-emission of systems operating in infrared and longer wavelengths, essential for optimizing performance in thermal imaging and infrared devices.
- Simulation of polarization effects including birefringence: The software models polarization effects, including birefringence, helping to evaluate how materials and surfaces affect polarized light in optical systems.
- Simulation of spectrometers and other multi-spectral systems: TracePro simulates the performance of spectrometers and multi-spectral systems, enabling precise analysis across a wide range of wavelengths.
- Thermal effects and loading: TracePro accounts for thermal effects, allowing users to analyze how heat impacts the optical system's performance, which is critical in high-power and heat-sensitive applications.
- Narcissus effects: Narcissus effects, where the system sees its own thermal radiation, are simulated to minimize distortion and improve imaging accuracy in infrared systems.
- Diffraction gratings: TracePro models diffraction gratings, allowing for detailed analysis of how these optical elements disperse light, which is vital in spectrometers and laser applications.
